Introduction

This article describes how to install and configure a TRM (Translation Resource Monitor) on a remote computing node, for an existing STS10 installation.

Description

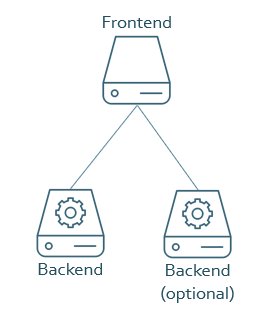

To improve performance sometimes we may consider to add a different computing node (or backend) and move the SYSTRAN Translation Resource Monitor (TRM). This procedure explains how to install a TRM on a dedicated computing node and configure it to communicate to TRS Console, RabbitMQ server & SES Console.

Procedure

1) Prerequesites

1.1) Update firewall rules on SES Frontend

This will to allow incoming connections from backend

firewall-cmd --permanent --add-rich-rule='rule family="ipv4" source address="[BACKEND_IP]/32" port port="5672" protocol="tcp" accept' # Rabbitmq
firewall-cmd --permanent --add-rich-rule='rule family="ipv4" source address="[BACKEND_IP]/32" port port="3445" protocol="tcp" accept' # TRSL - HTTP
firewall-cmd --permanent --add-rich-rule='rule family="ipv4" source address="[BACKEND_IP]/32" port port="8892" protocol="tcp" accept' # Gdict - HTTP
firewall-cmd --permanent --add-rich-rule='rule family="ipv4" source address="[BACKEND_IP]/32" port port="8889" protocol="tcp" accept' # Corpus manager - HTTP
firewall-cmd --reload

Note: RabbitMQ SSL port is 5671 (instead of 5672)

1.2) Open TRM port on new Backend

firewall-cmd --permanent --add-rich-rule='rule family="ipv4" source address="[FRONTEND_IP]/32" port port="8888" protocol="tcp" accept' # TRM - HTTP
firewall-cmd --reload

1.3) Create ulimits conf file on new Backend

Create the /etc/security/limits.d/systran_ses_limits.conf file containing the information below

*              hard    nofile          65536
*              soft    nofile          16384
*              -      nproc          unlimited
root           -      nproc          unlimited
systran        -      nproc          unlimited

2) Installation

2.1) Add Repository on the new Backend

Create the /etc/yum.repos.d/systranrpm.repo file by adding the following content. Depending on your version, replace the 'x'. For example STS 10.x,  can be replaced with 10.3.

Change the xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx string by your TRS key.

[systran-ses]
name=Systran RPM Repository
baseurl=https://repo.systran.net/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/systran_rpm/ses/10.X/centOS8/$basearch
enabled=1
gpgcheck=1
gpgkey=https://repo.systran.net/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx/systran_rpm/GPG-KEY-systranreporpm

2.2) Install Systran Translation Resource Monitor and Systran-redis on the new Backend

yum install -y systran-redis
yum install -y systran-translation-resource-monitor

3) Configuration on the new Backend

3.1) Systran-redis configuration

Edit the /opt/systran/redis/etc/redis.conf and replace the lines:

# maxmemory <bytes>

by:

maxmemory 1gb

and

# maxmemory-policy noeviction

by

maxmemory-policy allkeys-lru

3.2) SYSTRAN configuration

Edit the file /opt/systran/translation-resource-monitor/etc/trm.cfg and replace the following line:

broker = amqp://systran:SESpassword@localhost:5672

by

broker = amqp://systran:SESpassword@[FRONTEND_IP]:5672

Then edit the file /opt/systran/translation-resource-monitor/etc/source.http.cfg and replace the following line:

trsurl=https://localhost:3445

by

trsurl=https://[FRONTEND_IP]:3445

3.3) Enable and start services on the new Backend

Systran-redis:

systemctl enable systran-redis
systemctl restart systran-redis

Start SYSTRAN TRM:

systemctl enable systran-translation-resource-monitor
systemctl restart systran-translation-resource-monitor

4) Computing node registration

Last step consists of registering this computing node (Backend) in your SYSTRAN server.

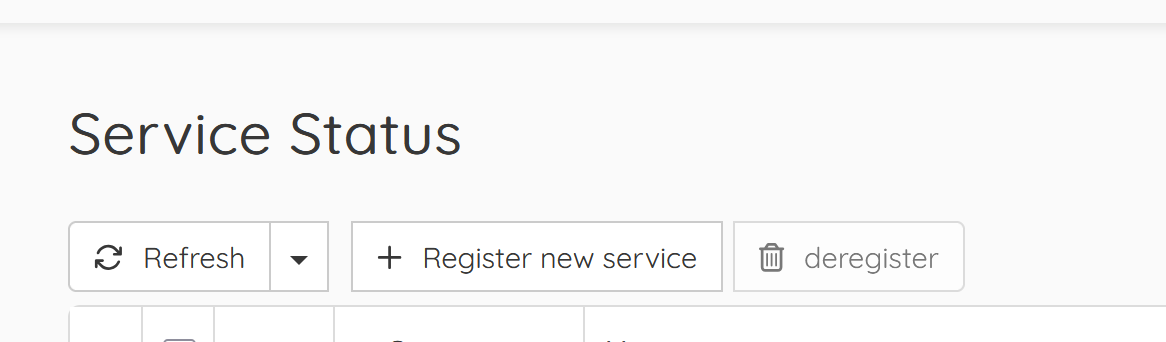

In the SES console go to Admin panel> Server management > Service status then click on the + Register new service button as described into below screenshot:

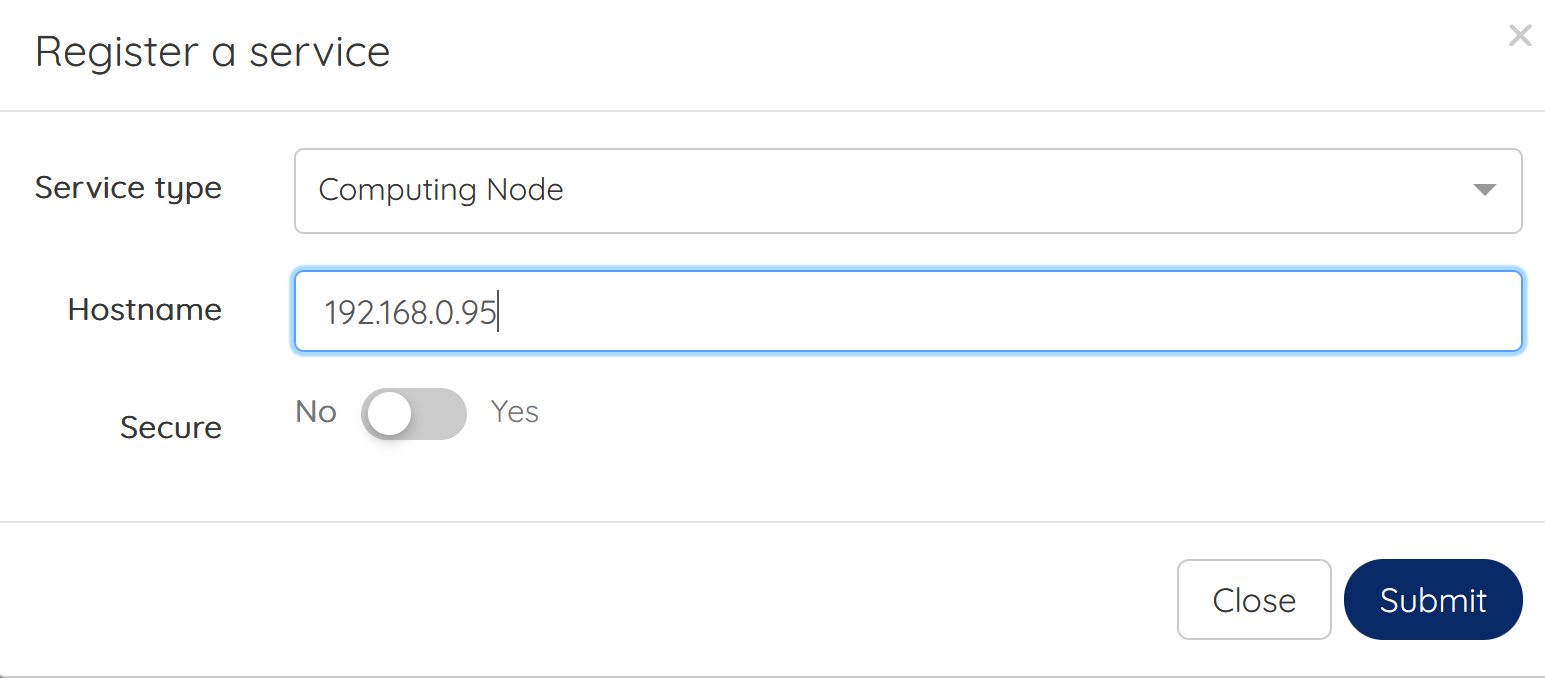

Select the Computing Node option, then type the IP or the Hostname of the new Backend (computing node) server. Finally click on Submit as shown below:

5) Check and tests

After registering the new computing node, by clicking on Refresh button, you should see the new computing node listed with status running (green).

The test consists of import & install a new Translation Resource on this new computing node, instantiate it then check if translation runs fine.
