[SPN9] SMTP Translator Configuration

  • Updated

Introduction

This article describes how to install & configure the SMTP Translator plugin.



Description

This article will describe how to install SMTP Translator plugin
1. Installation that should be done in all cases/modes.
2. Incoming email configuration
3. Outgoing email configuration (Gateway or MX mode)
4. SYSTRAN Settings
5. Tests & validation

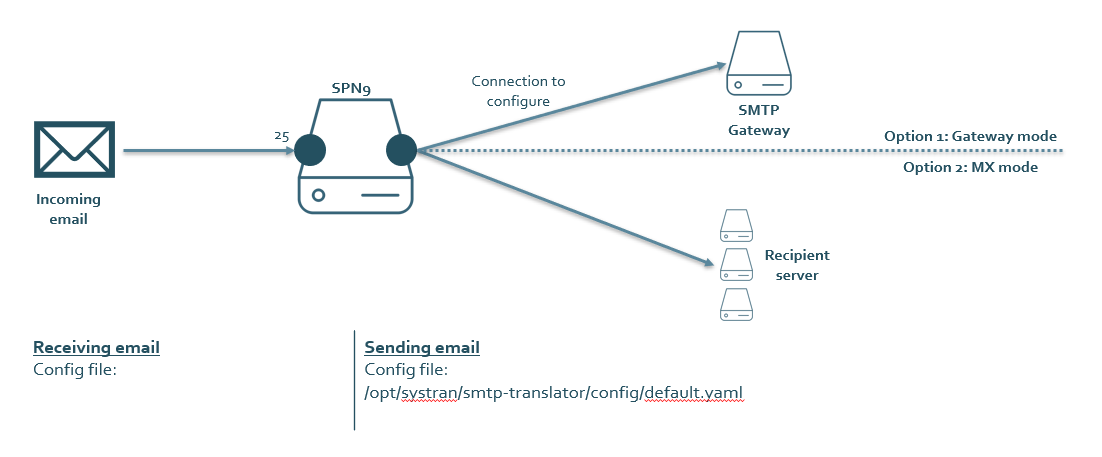

Flow diagram:




1. Installation

Online installation

Add the systran-ses-plugin repository to your systranrpm.repo file then install it

yum install systran-smtp-translator



Offline installation

Download the systran-smtp-translator rpm package from TRS then install it

yum install systran-smtp-translator*.rpm



Enable the service

Once systran-smtp-translator is installed, you need to enable this new component in the system:

systemctl enable systran-smtp-translator.service





2. Incoming email configuration

Ask to IT admin:

a) Either to add a rule in the company mail server to forward all emails sent to translate_XX_XX@company.com (XX could be any 2 character ISO language code) to SYSTRAN server.

 For advanced usage, you can also ask redirection of translate_XX_XX_XXXXXXXX-XXXX-XXXXXXXXX-XXXXXXXXXXXX@company.com emails to SYSTRAN server (XXXXXXXX-XXXX-XXXXXXXXX-XXXXXXXXXXXX for a specific profile ID)

(for o365, could be done following https://docs.microsoft.com/en-us/exchange/mail-flow-best-practices/use-connectors-to-configure-mail-flow/set-up-connectors-to-route-mail)

b) Either to set-up MX to allow SYSTRAN server to receive emails sent to that domain. Ask to IT admin to update DNS and set a MX record translate.company.com associated to SYSTRAN server IP address. In that case, all emails sent to translate.company.com will be received by SYSTRAN server, translated and sent back to user.



2.1 Ensure server can receive incoming email

2.1.1 Define sender domain:

Whatever the option above choosen, edit the /opt/systran/smtp-translator/config/host_list file then ensure mail domain name is white listed:

translate.company.com



2.1.2 Option 1, listen on port 25

Firewall should be open for 25:

firewall-cmd --permanent --zone=public --add-port=25/tcp
firewall-cmd --reload



Edit the file /opt/systran/smtp-translator/config/smtp.ini and change following entry:

listen=[::0]:25

As Node is not authorized to bind socket below 1024. In that case, type following command:

setcap 'cap_net_bind_service=+ep' `which node`

Then restart systran-smtp-translator service:

systemctl restart systran-smtp-translator



Note:

In case systran-smtp-translator or firewalld service do not start/restart, this is most probably because TCP 25 is already in use. To check TCP 25 port usage:

netstat -anp | grep :25

You could find postfix process running and binding :25 socket. In that case, stop & disable it:

systemctl stop postfix
systemctl disable postfix



In case server do not support IPv6 (service crash) then open IPv4 in smtp.ini:

listen=0.0.0.0:25





2.1.3 Option 2, redirect external port 25 to internal 8025 port

Ensure service is listening on port 8025 (default) in /opt/systran/smtp-translator/config/smtp.ini:

listen=[::0]:8025

Add the port redirection using following command:

firewall-cmd --permanent --zone=public --add-forward-port=port=25:proto=tcp:toport=8025

Then reload firewall config:

firewall-cmd --reload



2.1.4 Option 3, listen on port 8025 or any other port

Edit the file /opt/systran/smtp-translator/config/smtp.ini and change following entry:

listen=[::0]:8025

Firewall should be open for 8025:

firewall-cmd --permanent --zone=public --add-port=8025/tcp
firewall-cmd --reload





3. Outgoing email configuration

3.1 Set-up Gateway mode

Edit the file /opt/systran/smtp-translator/config/default.yaml file then check following entries in bold and update according to your settings:

email:
  mode: gateway # mx or gateway, for mx, the port 25 must be opened
  options:
    service:
    port: 25 # mandatory (update according to your company settings)
    host: [company SMTP server] # mandatory could be an IP or FQDN
    secure:
    auth:
    ignoreTLS:
    name:
    localAddress:
    connectionTimeout:
    greetingTimeout:
    socketTimeout:
    debug:
    authMethod:
    tls:





3.2 Set-up MX mode

Edit the file /opt/systran/smtp-translator/config/default.yaml file then check following entries:

email:
  mode: mx # mx or gateway, for mx, the port 25 must be opened
  options:
    ...



4. SYSTRAN Settings

4.1 Define SYSTRAN translation server connection

Edit the file /opt/systran/smtp-translator/config/default.yaml file then check following entries:

url: https://localhost:8904/translation/file/translate
  ...
user:
  apikey: <a_valid_api_key> (the apikey should match to a use whoc can access to requested translation profiles)

Set SYSTRAN Gateway port 8903 or 8904 according to your default.

If https is enabled: 8904 as redirection is not supported.



4.2 Define content to be translate

By default, subject, body and attachments are translated:

translationSkippedParts:
  body: false
  subject: false
  attachment: false



4.2 Define incoming email format (optional)

By default, translate_XX_YY@domain or translate_XX_YY_[Profile_ID]@domain are used where XX is source language and YY is target language. [Profile_ID] is optional.

rcptUserFormatOptions:
  separator: "_" # Quote this for special characters
  prefix: translate



4.2 Restrict email translation to a list of servers

Activate restriction by source DNS or IP:

echo "lookup_rdns.strict" >> /opt/systran/smtp-translator/config/plugins

Fill the withlst of serveur authorized to translate emails:

echo "smpt.company.com" >> /opt/systran/smtp-translator/echo "lookup_rdns.strict" >> config/lookup_rdns.strict.whitelist



5. Tests & validation

To test implemtation, you can send an email from a end user account. You can also use swaks toolikt to validate the complete workflow from the server prompt: SMTP Translator Mail reception > Mail translation > SMTP Translator Reponse Mail sending.

Tests & validation using swaks toolikt:

Install swaks using following command:

yum install swaks

We'll use following entries for testing:

On the server, launch the following command:

swaks -f systran@systran.net -t translate_fr_en@translate.company.com -s [Server public IP] -p [port: 25 or 8025]--header "Subject: Bonjour"



After launching the command, you should see correct entries:

[...]
-> MAIL FROM:<systran@systran.net>
<- 250 sender <systran@systran.net> OK
 -> RCPT TO:<translate_en_fr@translate.company.com>
<- 250 recipient <translate_en_fr@translate.company.com> OK
[...]
<- 250 Message Queued (36EB29E3-BE0B-40EC-8FD4-C25EBF1686C7.1)

That means first mail had been correctly sent to SES. Now you can check if translation is going fine and if response mail had been sent.

Open the systran-smtp-translator journal log

journalctl -u systran-smtp-translator

Then check if there is some translation activity. You can see it checking nb_characters, nb_tokens, nb_tus keyword.

Then you should see the correct delivery of mail response:

[data.translate] Sending Mail from translate_fr_en_068a98f7-81d3-4883-b760-a604b607d4da@translate.company.com to: systran@systran.net
[data.translate] Send email OK

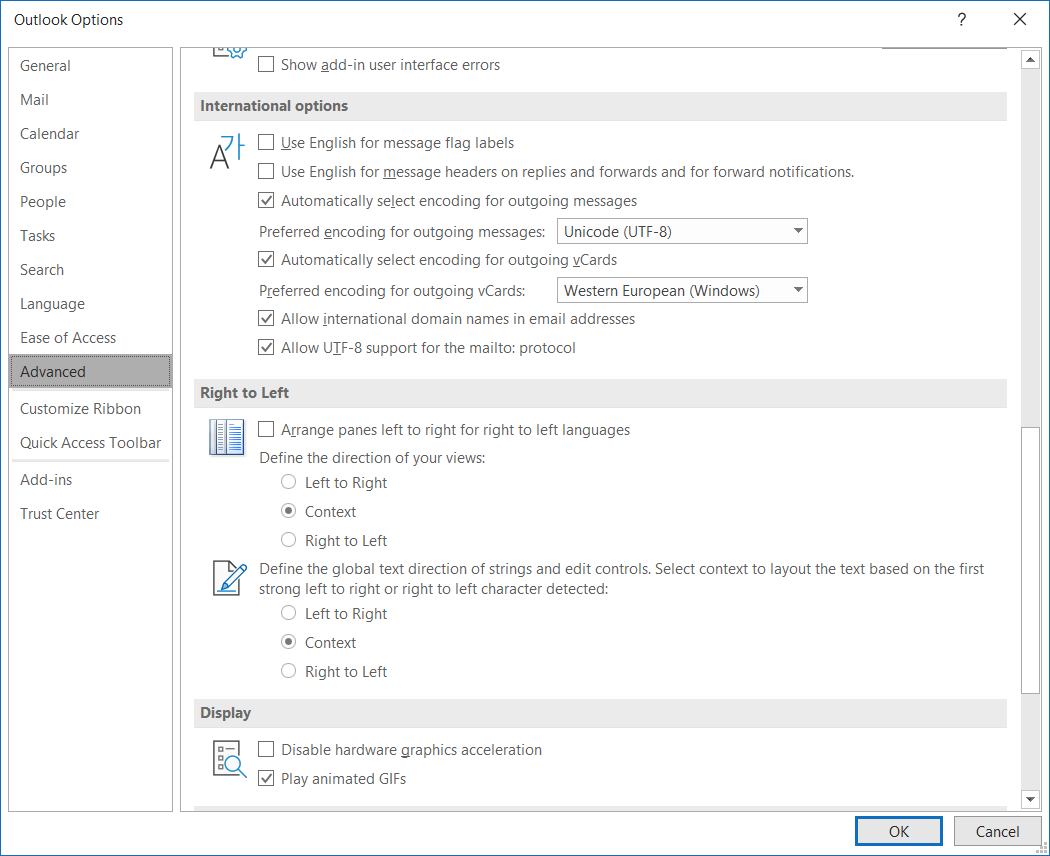

Note that emails have to be sent in UTF8. To force Outlook to send email using UTF8 encoding, please go in File, Option then Advanced Settings.
