Introduction

This article describes how to deploy and activate the ABBYY plugin.

Description

The plugin ABBYY is an optional OCR. The procedure below describes how to install the plugin ABBYY

Steps to deploy a ABBYY are:

First you need to identify where where your SYSTRAN translation resource monitor service is (or are) located. This is on the server(s) where you will find this service that you will have to follow this procedure (it requires 1 license per server).

Procedure

1) Install of the rpm ABBYY

1.1 Option 1 - offline server

Kindly request to the support to give you the rpm and then run the installation of the rpm:

yum install ./systran-abby*

1.1 Option 2 - online installation:

Add the repo in /etc/yum.repos.d/systranrpm.repo:

[systran-abbyy]
name = Systran RPM Repository
baseurl = https://repo.systran.net/{{TRS_Key}}/systran_rpm/ses/{{sts_server_version}}/plugins/beta/{{OS}}/$basearch
enabled = 1
gpgcheck = 1
gpgkey = https://repo.systran.net/{{TRS_Key}}/systran_rpm/GPG-KEY-systranreporpm

Where sts_server_version is your STS version, OS is centOS8 or centOS9 depending on your OS and TRS_Key is your TRS key from you account in https://trs.systran.net

Install the systran-abbyy package:

yum install systran-abbyy

If your server if offline please request to the support to give you the rpm.

1.2 Start and enable the service:

check if SElinux is not set to enforced with the command getenforce

systemctl enable abbyy-license
systemctl start abbyy-license

2) Activation of the licence

Execute the ABBYY License manager:

systemctl start abbyy-license
export LD_LIBRARY_PATH=/opt/systran/filter/plugins/abbyy/lib
cd /opt/systran/filter/plugins/abbyy/lib
./LicenseManager.Console

2.1) Option 1 - Activation offline

To activate the licence in offline mode follow this :

https://help.systrangroup.com/hc/en-us/articles/360023421754--Plugins-ABBYY-Offline-activation-by-mail-or-on-ABBYY-website

2.1) Option 2 - Activation online

To activate the licence in online mode follow this :

https://help.systrangroup.com/hc/en-us/articles/360008745979--Plugins-ABBYY-Online-activation

3) Activate ABBYY on STS10

Edit /opt/systran/filter/plugins/abbyy/etc/plugin.cfg and add your license serial number instead of $license_key_value:

license = $license_key_value

To reduce the consumption of memories uncomment max_recognition_processes_count = 2

Default RAM consumption is ~256MB per active systran filter and per max_recognition_processes_count (or per vcore if max_recognition_processes_count not set)

Restart the filter

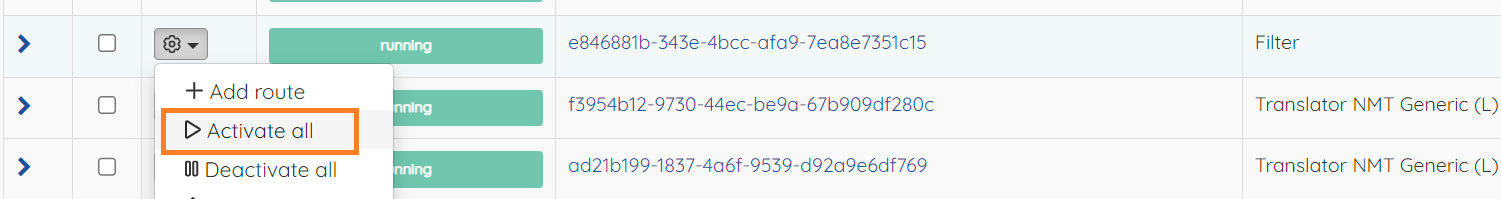

Go to the STS console UI Advanced configuration > Translation Resource and set the instances number to 0 for the Filter then reinitialize with the previous number of instances.

and click activate all

Alternative to restart filter processes:

pkill -9 -f SystranFilterEngine

Test !

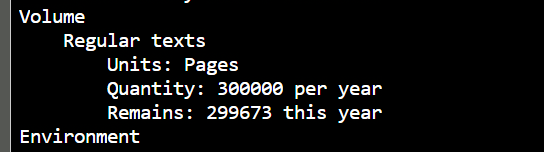

Check the number of page decrease when you translate a pdf from the licence manager

export LD_LIBRARY_PATH=/opt/systran/filter/plugins/abbyy/lib
cd /opt/systran/filter/plugins/abbyy/lib
./LicenseManager.Console
