[Plugins] ABBYY Offline activation : by mail or on ABBYY website

  • Updated

Introduction

Objectives: activate your ABBYY licence:

1) By email

2) On ABBYY website

Then you will find checks to validate your activation and ensure proper translation.



Prerequisites:

  • Valid license,
  • SYSTRAN server where ABBYY plugin is installed following SYSTRAN procedure,
  • Internet access to send an email,
  • or web access to https://activation.abbyy.com



1) Activation steps by email

From command line, run ABBYY wizard

export LD_LIBRARY_PATH=/opt/systran/filter/plugins/abbyy/lib
cd /opt/systran/filter/plugins/abbyy/lib
./LicenseManager.Console



From the activation Wizard, select "email"


Then go to the next page:

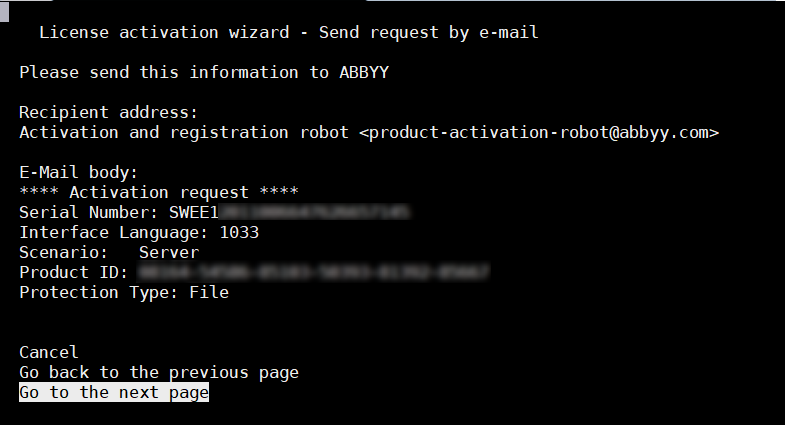

Wizard will generate a email template:


that you will have to copy/paste in a mail:


ABBYY server license will send back a file to upload (or type) on the server and select from Wizard:




2) Activation steps on ABBYY website

From the activation Wizard, select "email"


Then go to the next page:


Note down Product ID :


Then connect to https://activation.abbyy.com, choose "ABBYY FineReader" and apply the part corresponding to ABBYY FineReader12 :

choose "ABBYY FineReader" enter the Product ID for the part corresponding to ABBYY FineReader12 and click "submit" :




After clicking "submit", you can download license file by clicking on "Get the file" :


Copy that file to /opt/systran/filter/plugins/abbyy/lib/, chown it to systran:systran.

Re-execute : ./LicenseManager.Console, choose "I already have activation file", then enter filename.


License is activated !



3) Final checks

Check activated license:

./LicenseManager.Console --listAvailableLicenses

The output should be the license number that you entered before.



Ensure the license number is correct in the filter

vi /opt/systran/filter/plugins/abbyy/etc/plugin.cfg

license = $license_key_value



Restart the filter by going on the web interface in "Advanced configuration" and
put the instances number to 0 then reset the previous number of instances.





Note 1:

It could be usefull to limit ABBYY RAM usage by limiting number of process in RAM (will also reduce OCR speed). You can do that by adding /opt/systran/filter/plugins/abbyy/etc/plugin.cfg

max_recognition_processes_count = 4



Note 2:

If ABBYY license service is not started:

export LD_LIBRARY_PATH=/opt/systran/filter/plugins/abbyy/lib
cd /opt/systran/filter/plugins/abbyy/lib
./LicensingService -start
